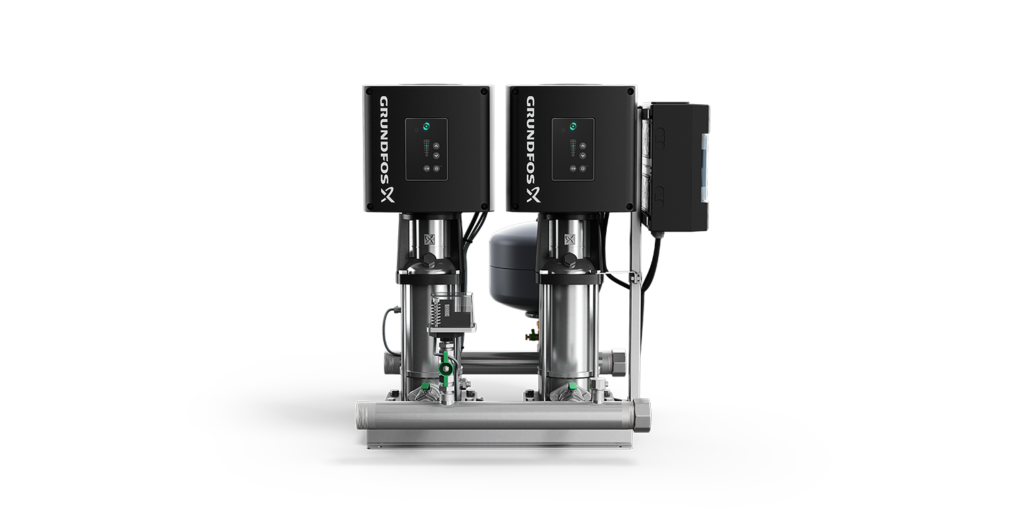

HydroPneumatic Pump System

Product Details

IE5 efficiency rated motor designed to operate efficiently across a wide voltage range, making it suitable for areas with frequent voltage fluctuations.
Motor windings are manufactured using high-grade enameled copper wire instead of PVC insulated wire for improved electrical performance.
This advanced winding design enhances overall efficiency, reduces power consumption, and lowers operating costs.
The motor is filled with special food-grade, non-toxic dielectric oil that lubricates ball bearings and axial thrust bearings.
The dielectric oil also provides excellent insulation and heat dissipation, increasing motor reliability and service life.
Outer motor casing is constructed entirely from stainless steel, offering superior corrosion resistance and an enhanced appearance.
Compact and lightweight motor design simplifies transportation, storage, handling, and installation.
Equipped with a three-wire removable electric cable featuring a waterproof connector, allowing easy cable replacement without dismantling the capacitor.
All rotating components and assemblies are dynamically balanced to ensure vibration-free operation and extended bearing life.
Permanently split capacitor (PSC) motor design eliminates the need for starting capacitors, significantly reducing control box cost.
Lower control box requirements help reduce overall installation and system costs.
Slim and compact pump set design allows easy installation even in narrow bore wells.

Material of Construction
Motor Body	Stainless Steel
Stator	Vacuum Impregnated with class F insulations
Rotor	Aluminum pressure die cast
Winding	Enamelled copper wire with class F insulations
Bearing	Heavy duty angular contact bearing/ ball bearing
Bowl	High grade Noryal
Wear Rings	High quality abrasion resistant P.U.
Seal	Mechanical Seal
Diaphragm	Adequately sized to accommodate pressure difference of oil inside the motor and prevent loss of oil
Impeller	High quality abrasion resistant Noryal & dynamically balanced.
Shaft	Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.
Suction Casing	Provided with perforated Stainless Steel Strainer and adequately sizes to allow the water to be sucked in with minimum friction.
Cable Sealing Arrangement	Designed so that no bore well water with sand can enter the motor.
